How to install the software, connect the device, and start diagnosis when using a VXDIAG device for the first time? Don’t worry, this article will guide you step by step.
1. VX Manager download and install
Software Download:
Before starting car diagnostics using the device, you need to install the VX Manager management tool and driver on your PC. You can download the latest version of the installer from the following link:
http://www.allscanner.com/en/download.html
http://www.vxdiag.net/#download
Software installation requirements:
Processor: 1.6 GHz or faster.
Memory: DDR 4GB or higher.
Hard disk: 80GB or more.
Network interface: LAN 100/1000M.
Communication interface: USB2.0 or USB3.0.
Wireless network: WiFi 802.11a/b/g/n.
Operating System: Windows 10/8/7.
Browser: Internet Explorer 11 or later
Note: Windows XP system has stopped supporting!
Software installation steps:
After the VX Manager download is complete, double-click to install the program.
In the welcome installation interface, click [Next] to continue.
Then select the components that need to be installed. During this process, you can check the original diagnostic driver to install, or use VX Manager to freely install the required original driver after the installation is complete.
The installation process may take several minutes, please be patient.
On the installation completion interface, click [Finish] to complete.
After the installation is completed, VX Manager shortcuts will be generated on the desktop and start menu.
2. Connect the device to the vehicle
Taking the VCX-DoIP device connected via USB as an example, please make sure the device is connected properly:
Use the DB26-OBD cable to connect the device to the vehicle.
Connect your device to your PC using a USB Type-B cable.
3. How to use VX Manager
Start VX Manager.
If your device is connected successfully, the following information will be displayed:
[Reconnect] ── Reconnect the device and refresh the device information.
[Device Test] ── The device self-tests and the LED indicator light flashes and a beep sounds.
[Restart] ── Reset the device and restart it.
[Update Firmware] ── Download and update the device firmware program online.

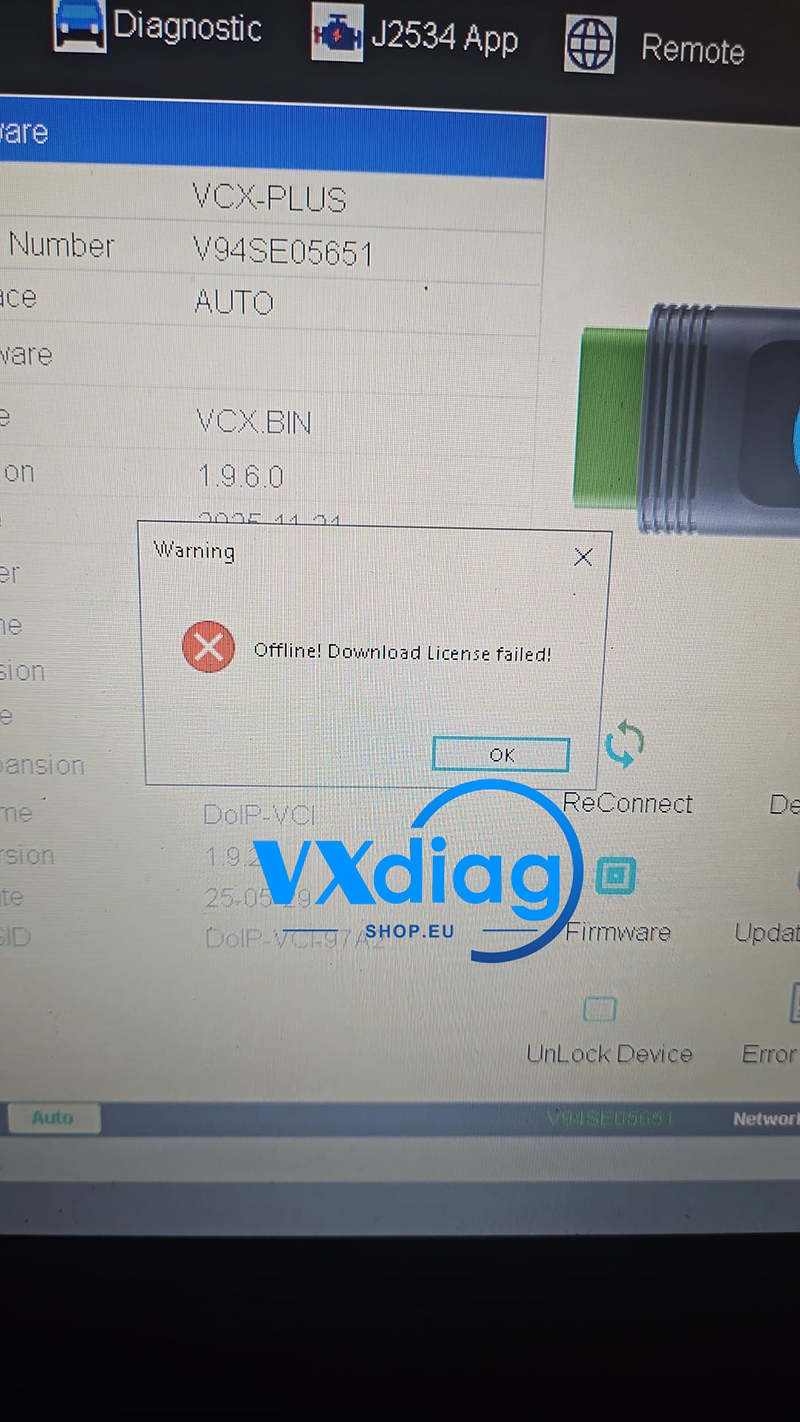

[Update License] ── Download and update device authorization data online.
[DoIP switch] ── Activate or deactivate DoIP protocol to test vehicle DoIP communication.
[Unlock Device] ── Manually unoccupy and release the device after it is occupied.
[Error Report] ── View and obtain device error logs.
Install the original diagnostic driver on VX Manager
Click the [Diagnostic]->[Automotive] page, click the [JLR DoIP] diagnostic application to install, and click [Install] in the driver information interface to complete the driver installation.
Open JLR Pathfinder diagnostic software to start diagnosis.
The above is the guide for using VXDIAG device for the first time. Please pay attention to more technical services.
